Home Automation


Description

Home automation and enviromentals monitoring - Electricity outlets, lights, boiler and gate control with light, temperature and humidity log.

Control multiple power outlets and lights with scheduling, automation scenarios and remote access, using our App or via the Web
Control multiple garden sprinkles and drippers with scheduling, scenarios and remote access
Control gates and garage doors, automate lights around the house and garden when entering or when the alarm system switched on. Additional physical buttons connected for setting quick access scenarios, main water openeing, gate opening from inside the house and within your yard exit.
Temperature, humidity and light log and monitoring with alerts and automation scenarios when it gets above or below your defined thresholds.
Schedule and remote control your boiler for hot water.
Provide remote access to your gates and garage to friends and family.


Components

Raspberry Pi
BMP280 - I2C Temperature, Humidity
and Atmospheric Pressure
LDR (Light Dependent Resistor)
and 1µF (105) capacitor
5V Relay Module (*2) - 4 Channel 220v/110v
5V Relay Module - 4 Channel 12v or higher
5V Relay Module - 2 Channel 12v or higher
Physical button (*3)
Optional: LED & 330 Ω resistor

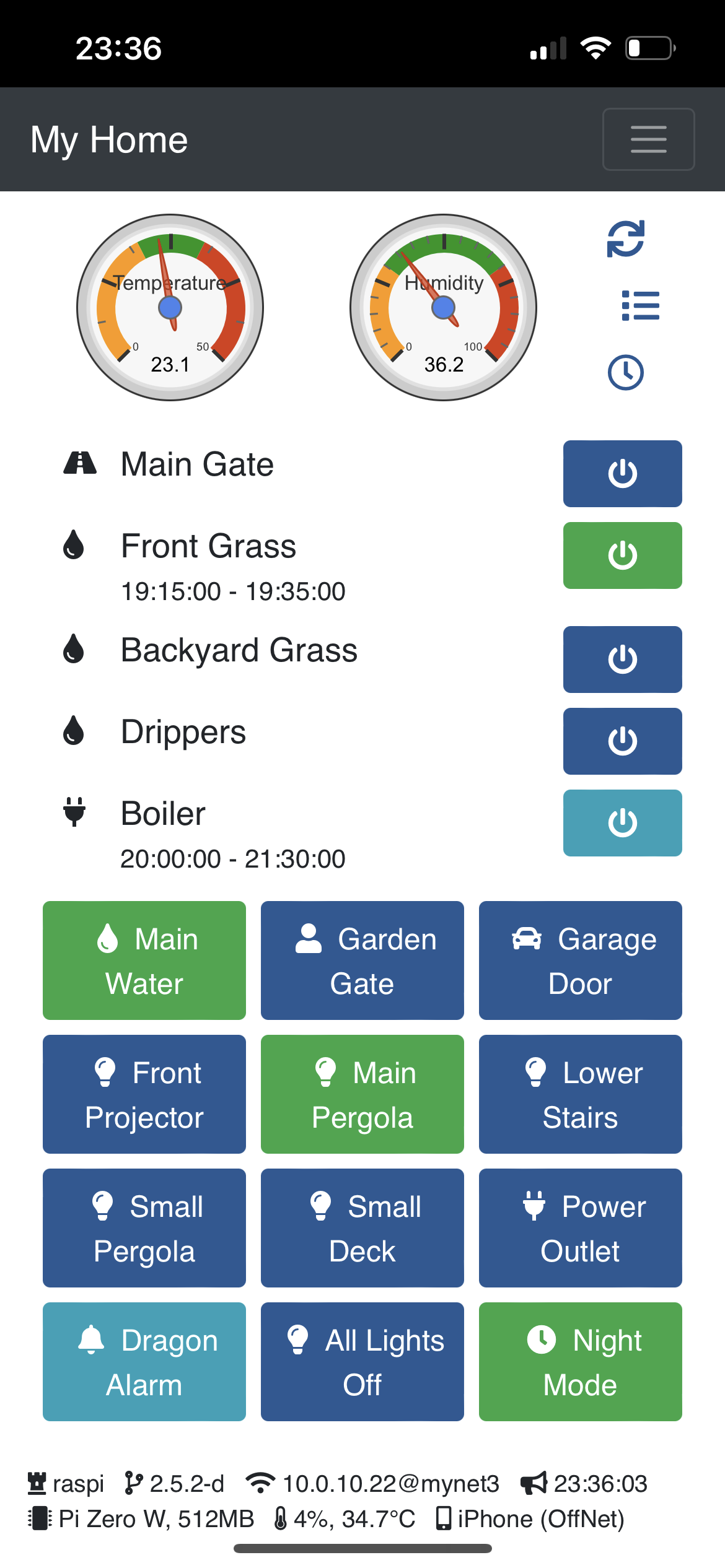

app

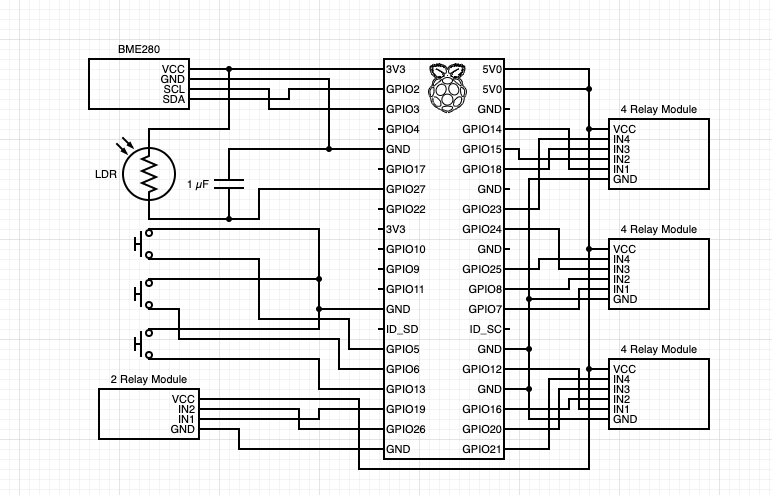

Diagram

diagram


Configuration

app.title My Home
app.icon home
agent.status.gpio 17
agent.sensors.rate 10
sensor1.sensor I2C
sensor2.sensor LDR 27
g1.label Main Gate
g1.type gate 7
g1.icon road
g2.label Garden Gate
g2.type gate 8
g2.icon user
g3.label Garage Door
g3.type gate 24
g3.icon car
boiler.label Boiler
boiler.type relay 25
boiler.icon plug
w0.label Main Water
w0.type relay 14
w0.icon tint
w1.label Front Grass
w1.type relay 15
w1.icon tint
w2.label Backyard Grass
w2.type relay 18
w2.icon tint
w3.label Drippers
w3.type relay 23
w3.icon tint
r1.label Front Projector
r1.type relay 12
r1.icon lightbulb
r2.label Main Pergola
r1.type relay 16
r2.icon lightbulb
r3.label Lower Stairs
r3.type relay 20
r3.icon lightbulb
r4.label Small Pergola
r4.type relay 21
r4.icon lightbulb
p1.label Power Outlet
p1.type relay 19
p1.icon plug
r5.label Small Deck
r5.type relay 26
r5.icon lightbulb
alarm.label Raspi Alarm
alarm.type virtual
alarm.icon bell
on.label All Lights On
on.ctrls r1 r2 r3 r4 r5
on.icon lightbulb
off.label All Lights Off
off.ctrls r1 r2 r3 r4 r5
off.icon lightbulb
night.label Night Mode
night.type virtual
night.icon clock
